Overview
Use an evaluation's completion date as an element on a graph. Learn how to display an evaluation's completion date on rows of a table or on the horizontal axis of a graph.
Tip: When evaluation completion date is selected in the graphing options, the interaction list underneath the report will be filtered based on evaluation completion date.

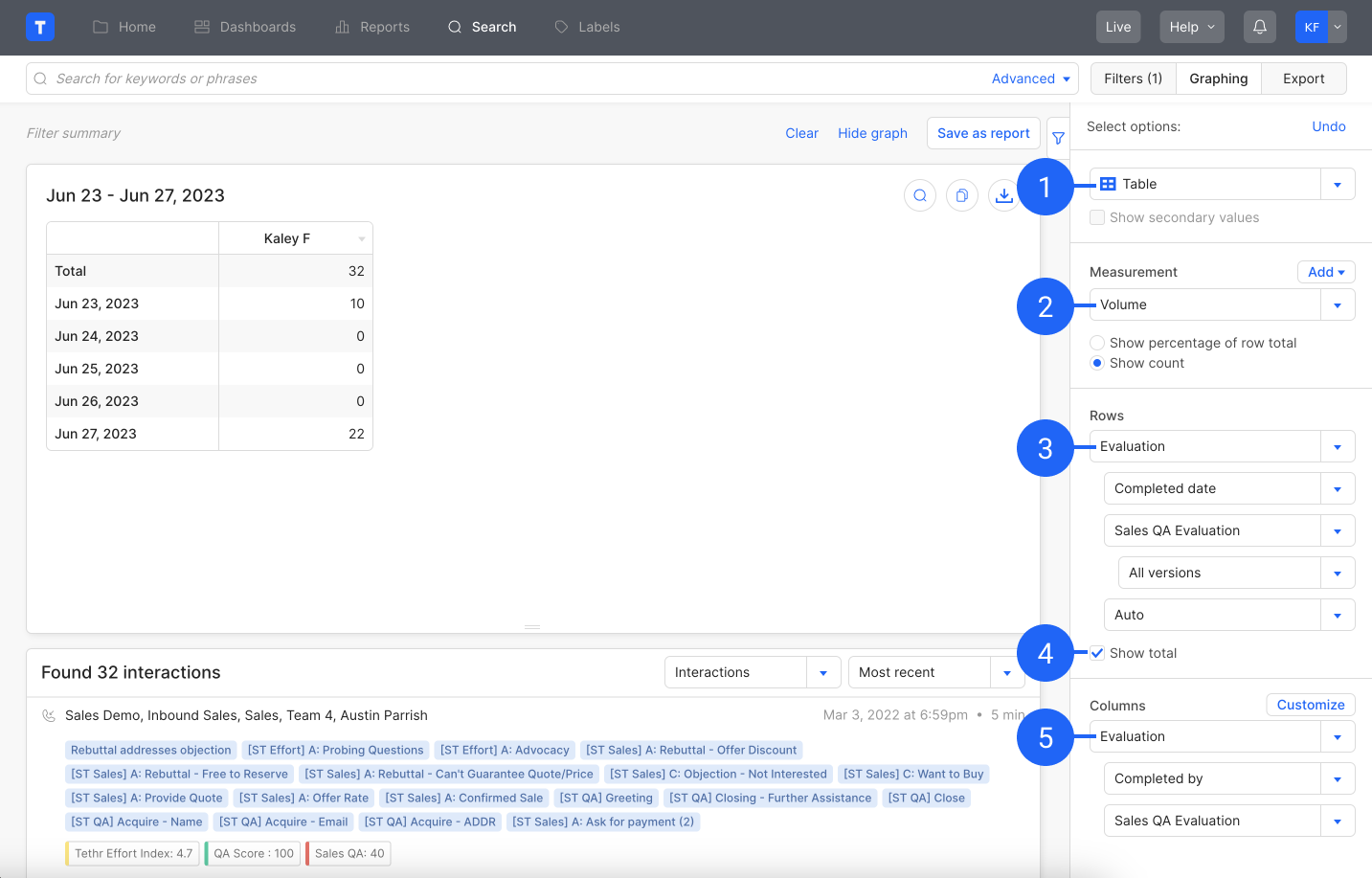

For tables, display evaluation completion date in rows:
- Choose table as the graph type
- Choose volume as the measurement
- Configure the rows:
- Select evaluations from the dropdown list
- Choose completed date as the type of information to display
- Specify which evaluation and versions of that evaluation to display
- Optional: Check the box to show the total number of completed evaluations as a row at the top of the table
- Configure the columns:
- Select evaluations from the dropdown list
- Choose completed by to display which users completed the evaluation
Important: For accurate results, the evaluation displayed in the column should be the same as the evaluation displayed in the rows.

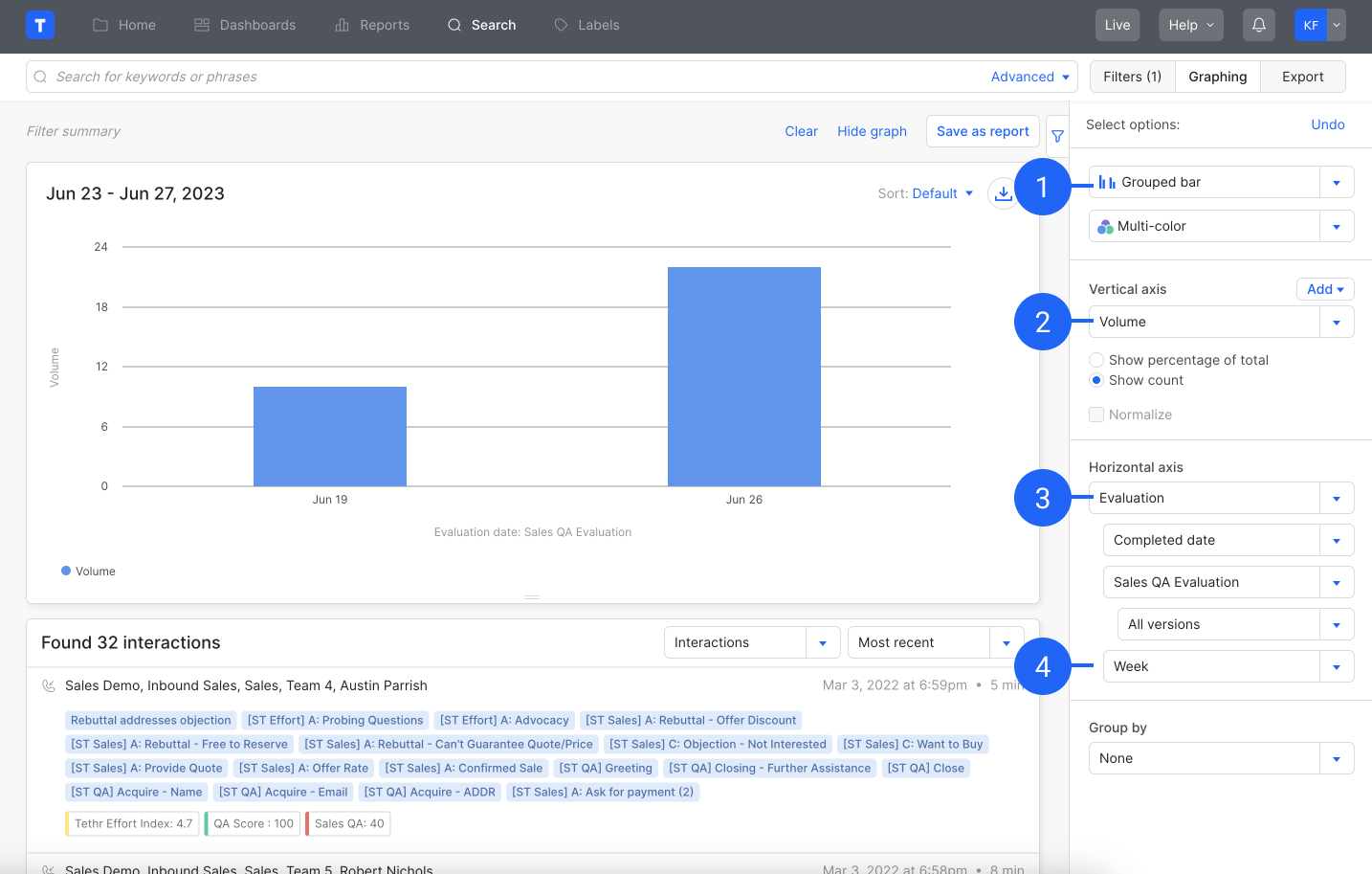

On bar, area, and line graphs, display evaluation completion date on the horizontal axis:
- Choose bar as the graph type
- Choose volume as the measurement
- Configure the horizontal axis:
- Select evaluations from the dropdown list
- Choose completed date as the type of information to display
- Specify which evaluation and versions of that evaluation to display
- Choose how you'd like to display dates
